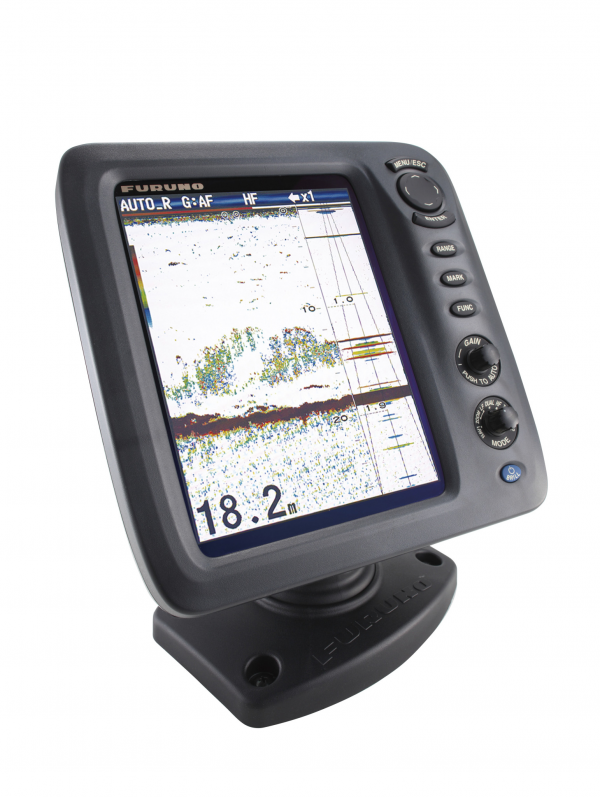

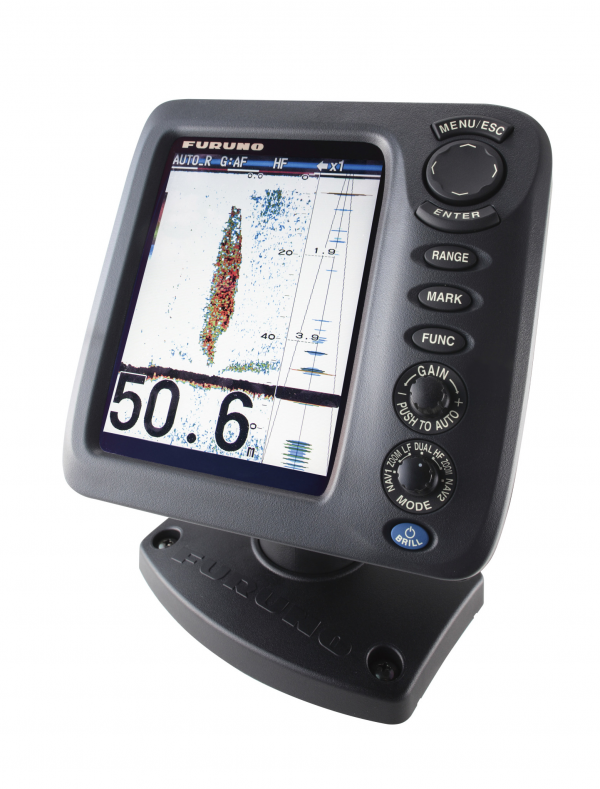

5.7″ COLOR LCD Fisfinder Model FCV-628
| Specifications | |
| DISPLAY | |
| Display unit | :5.7″ TFT color LCD |
| Pixel number | :VGA 480 x 640 |
| FISH FINDER | |
| Frequency | :50 and 200 kHz |

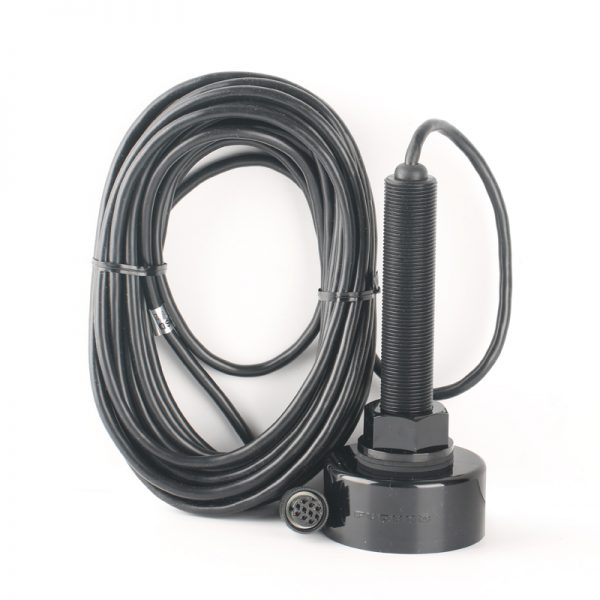

| Transducer | :600 W |
| Range Scale | :2-1200 m |
| Pulselength & PRR | :0.04-3 ms,Max 3,000 pulse/min |
| Display Mode | :Single frequency (50 or 200 kHz),Dual frequency,Zoom,Nav data,A-scope,Marker zoom,Bottom zoom,Bottom-lock,Bottom Discrimination,ACCU-FISH,RezBoost |
| ACCU-FISH | : √ |
| Bottom Discrimination | : √ |
| OTHERS | |
| Waterproofing | :IP56 |
| Power Supply | :12-24 VDC, 11-0.5 A |
| Size | :207 (H) x 170 (W) x 132 (D) |
| Weight | :Bracket Mount: 1.3 kg |
| Flush Mount | :0.9 kg |
